Implement a basic voice call
Prerequisites
Before you begin, make sure you complete the following steps:
- Create a project in ZEGOCLOUD Admin Console, and get the AppID of your project.
- Integrate the ZEGO Express SDK into your project. For more details, see Integrate the SDK.
Implementation steps

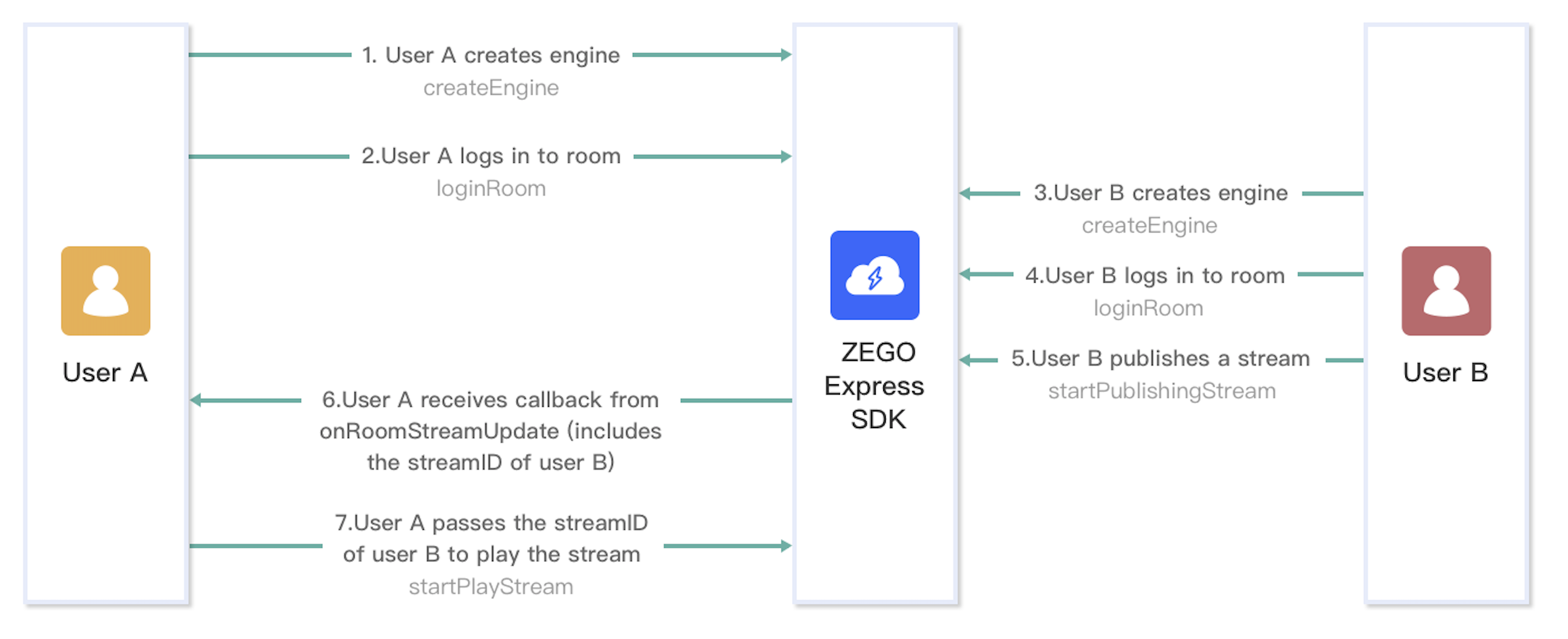

The following diagram shows the basic process of User A playing a stream published by User B.

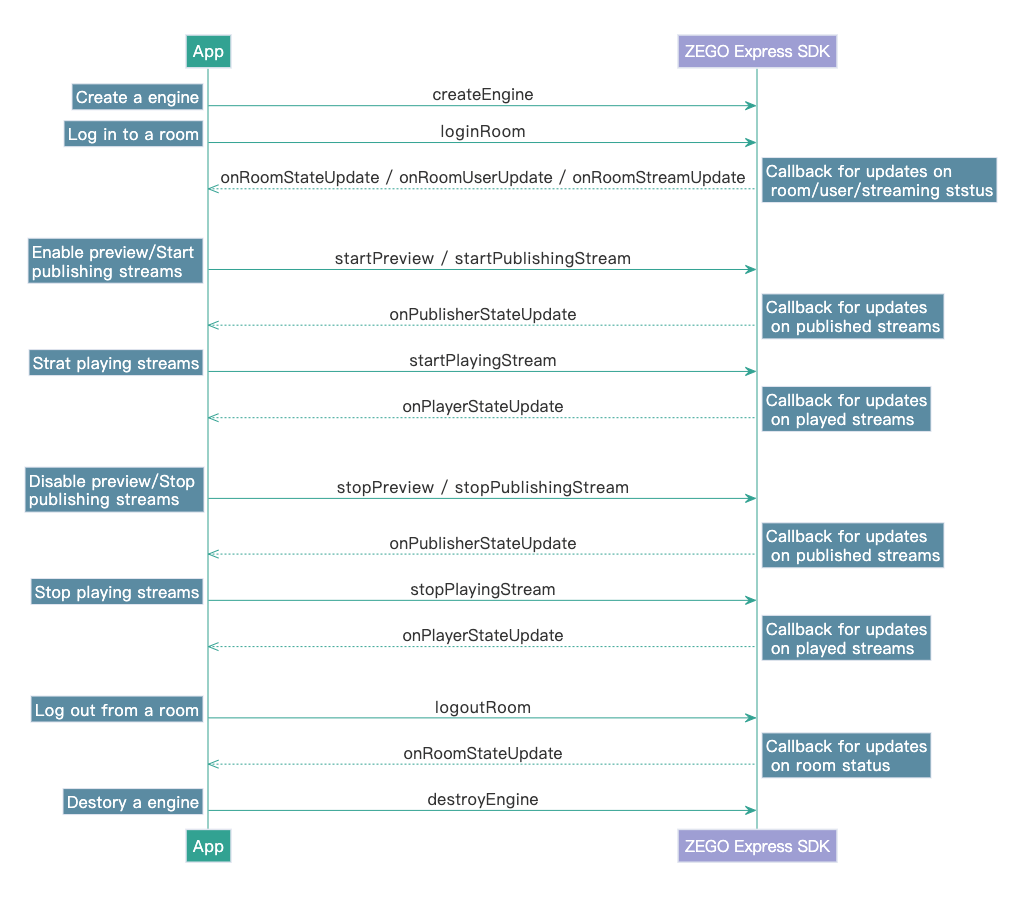

The following diagram shows the API call sequence of the stream publishing and playing process:
The following sections explain each step of this process in more detail.
Create a ZegoExpressEngine
instance
To create a singleton instance of the ZegoExpressEngine
class, call the createEngine
method with the AppID of your project.
// Define a ZegoExpressEngine object
ZegoExpressEngine engine;
// Use the AppID and AppSign assigned by ZEGO when you create your project in the ZEGO Admin Console.
uint appId= ; // AppID format:1234567890
// Create a ZegoExpressEngine instance with your AppID and AppSign, and initialize it to use the testing environment and the settings for the general scenario.
engine = ZegoExpressEngine.CreateEngine(appId, appSign, true, ZegoScenario.General);
Log in to a room
Before logging in to a room, you will need to generate a token first; Otherwise, the login will fail.
To generate a token, refer to the User privilege control.
To log in to a room, call the loginRoom
method. If the roomID does not exist, a new room will be created and you will log in automatically when you call the loginRoom
method.
// create a user
ZegoUser user = new ZegoUser();
user.userId="xxx";
user.userName="xxxx";
// set the token
ZegoRoomConfig roomConfig = new ZegoRoomConfig();
roomConfig.token = "xxxx";
// Log in to a room
engine.LoginRoom("123666", user, roomConfig);
To listen for and handle various events that may happen after logging in to a room, you can implement the corresponding event callback methods of the event handler as needed. The following are some common event callbacks related to room users and streams:
onRoomStateUpdate
: Callback for updates on current user's room connection status. When the current user's room connection status changes (for example, when the current user is disconnected from the room or login authentication fails), the SDK sends out the event notification through this callback.onRoomUserUpdate
: Callback for updates on the status of other users in the room. When other users join or leave the room, the SDK sends out the event notification through this callback.onRoomStreamUpdate
: Callback for updates on the status of the streams in the room. When new streams are published to the room or existing streams in the room stop, the SDK sends out the event notification through this callback.
Event callbacks are delegates of the ZegoExpressEngine
class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine
instance.
- To receive the
onRoomUserUpdate
callback, you must set theisUserStatusNotify
property of the room configuration parameterZegoRoomConfig
totrue
when you call theloginRoom
method to log in to a room. - To play streams published by other users in the room: you can listen for the
onRoomStreamUpdate
callback, and when there is a stream added, call thestartPlayingStream
method to start receiving and playing the newly added stream.
// Callback for updates on the current user's room connection status.
public void OnRoomStateUpdate(string roomId, ZegoRoomState state, int errorCode, string extendedData) {
// Implement the callback handling logic as needed.
}
// Callback for updates on the status of other users in the room.
private void OnRoomUserUpdate(string roomId, ZegoUpdateType updateType, List<ZegoUser> userList, uint userCount) {
// Implement the callback handling logic as needed.
}
// Callback for updates on the status of the streams in the room.
private void OnRoomStreamUpdate(string roomId, ZegoUpdateType updateType, List<ZegoStream> streamInfoList, uint streamInfoCount) {
// Implement the callback handling logic as needed.
}
// Assign the callback handling methods you implement to the delegates of the engine.
engine.onRoomStateUpdate = OnRoomStateUpdate;
engine.onRoomUserUpdate = OnRoomUserUpdate;
engine.onRoomStreamUpdate = OnRoomStreamUpdate;
Publish streams
To start publishing a local audio streams to remote users, call the startPublishingStream
method with the corresponding Stream ID passed to the streamID
parameter.
streamID
must be globally unique within the scope of the AppID. If different streams are published with the same streamID
, the ones that are published after the first one will fail.
// Start publishing a stream.
[[ZegoExpressEngine sharedEngine] startPublishingStream:@"stream1"];
To listen for and handle various events that may happen after stream publishing starts, you can implement the corresponding event callback methods of the event handler as needed. The following is a common event callback related to stream publishing:
onPublisherStateUpdate
: Callback for updates on stream publishing status. After stream publishing starts, if the status changes, (for example, when the stream publishing is interrupted due to network issues and the SDK retries to start publishing the stream again), the SDK sends out the event notification through this callback.onPublisherQualityUpdate
: Callback for reporting stream publishing quality. After stream publishing starts, the SDK sends out the streaming quality data (resolution, frame rate, bit rate, etc.) regularly through this callback.
Event callbacks are delegates of the ZegoExpressEngine
class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine
instance.
// Callback for updates on stream publishing status.
public void OnPublisherStateUpdate(string streamId, ZegoPublisherState state, int errorCode, string extendedData)
{
// Implement the callback handling logic as needed.
}
// Callback for updates on stream publishing quality.
private void OnPublisherQualityUpdate(string streamId, ZegoPublishStreamQuality quality)
{
// Implement the callback handling logic as needed.
}
// Assign the callback handling methods you implement to the delegates of the engine.
engine.onPublisherStateUpdate = OnPublisherStateUpdate;
engine.onPublisherQualityUpdate = OnPublisherQualityUpdate;
engine.StartPublishingStream("stream1");
Play streams
To start playing a remote audio or video stream, call the startPlayingStream
method with the corresponding stream ID passed to the streamID
parameter and the view for rendering the video passed to the canvas
parameter.
You can listen for the onRoomStreamUpdate
callback to obtain the stream IDs of the streams published by remote users.
There are four screen orientations for Android devices and iOS devices: Portrait
, PortraitUpsideDown
, LandscapeLeft
, and LandscapeRight
. To make sure the local preview and remote playback are always displayed in the right orientation, you need to add related code in your project, for more details, see [Qucik starts-Integration-4 Set screen orientation.
In Unity, you can render the remote video stream preview using RawImage
or Plane Renderer
.
Method 1: Using
RawImage

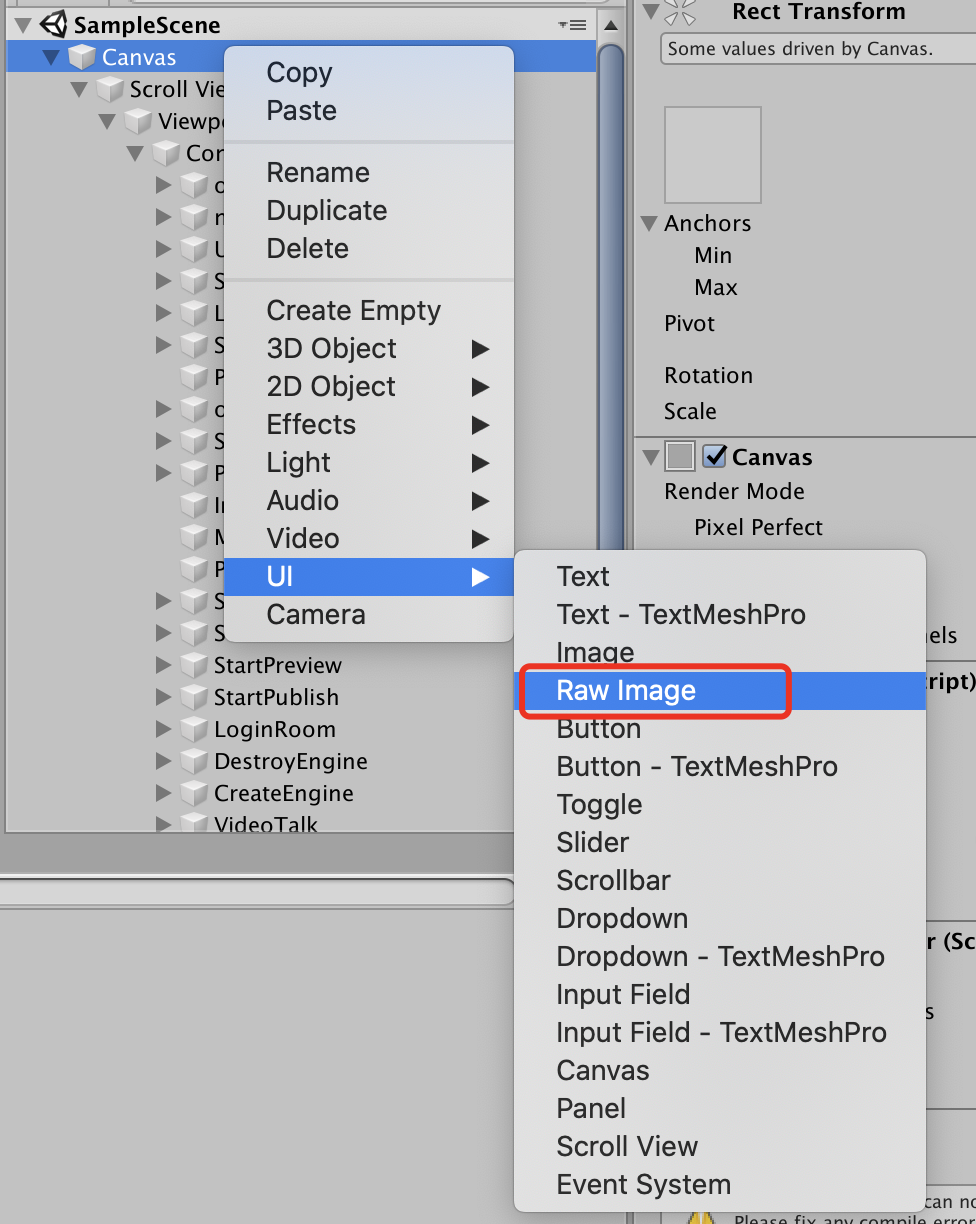

Select Canvas > UI > Raw Image to create a
RawImage
(with aRenderer
).Add the following code to render the remote video stream using the RawImage.
private const float Offset = 100;
GameObject go = new GameObject();
if (go == null)
{
return;
}
go.name = "play-rawimage";
// Create a RawImage in runtime
go.AddComponent<RawImage>();
GameObject canvas = GameObject.Find("Canvas");
if (canvas != null)
{
go.transform.parent = canvas.transform;
}
float xPos = UnityEngine.Random.Range(Offset - Screen.width / 2f, Screen.width / 2f - Offset);
float yPos = UnityEngine.Random.Range(Offset, Screen.height / 2f - Offset);
go.transform.localPosition = new Vector3(xPos, yPos, 0f);
go.transform.localScale = new Vector3(3f, 4f, 1f);
// Add a RawImageVideoSurface component, and the renderer is RawImage.
RawImageVideoSurface videoSurface = go.AddComponent<RawImageVideoSurface>();
// Set the Stream ID of the stream you want to render.
videoSurface.SetPlayVideoInfo("123");
// Set the engine as the video source.
videoSurface.SetVideoSource(engine);
// Start playing the stream.
engine.StartPlayingStream("123");
Method 2: Using
Plane Renderer

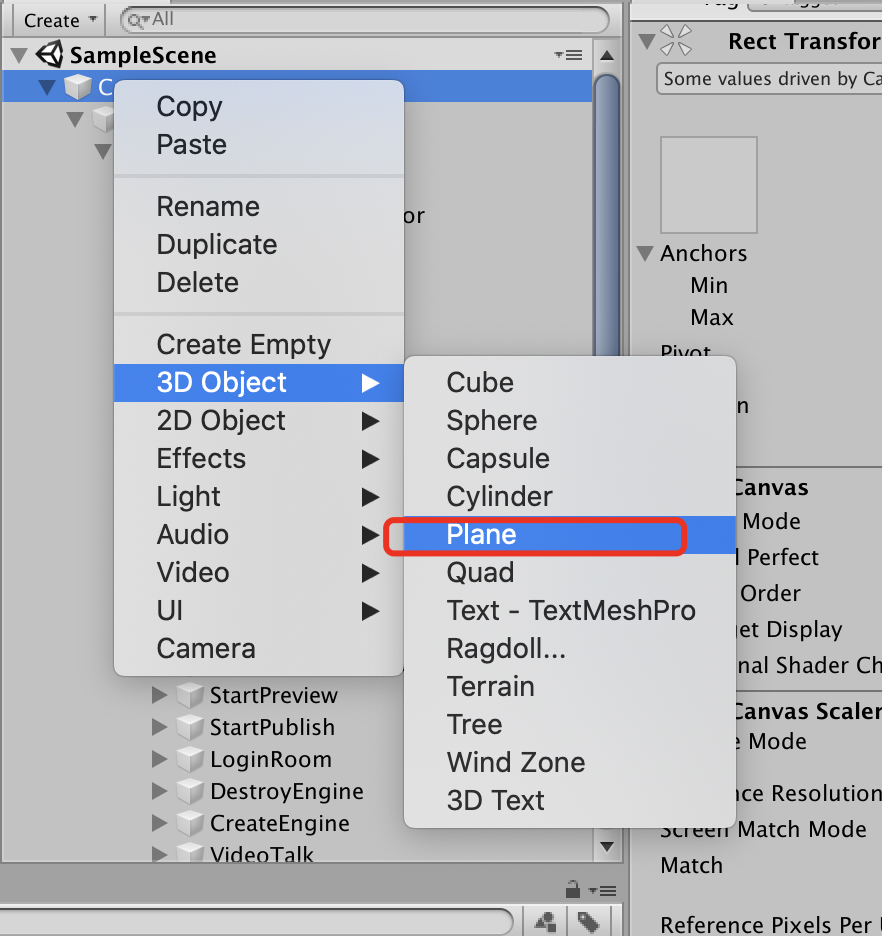

Select Canvas > 3D Object > Plane to create a
Plane
(with aRenderer
).Add the following code to render the remote stream using the
Renderer
of thePlane
.
remoteVideoPlane = GameObject.Find("PlayRender");
if (remoteVideoPlane != null)
{
if (remoteVideoSurface == null)
{
// Add a RendererVideoSurface component, and the renderer is the Plane's renderer.
remoteVideoSurface = remoteVideoPlane.AddComponent<RendererVideoSurface>();
// Ensure the video can be displayed on the screen.
remoteVideoSurface.transform.Rotate(90.0f, -180.0f, 0.0f);
remoteVideoSurface.transform.position = new Vector3(0.0f, 0.0f, 0.0f);
remoteVideoSurface.transform.localScale = new Vector3(0.36f, 1f, 0.64f);
}
if (remoteVideoSurface != null)
{
// Set the Stream ID of the stream you want to render.
remoteVideoSurface.SetPlayVideoInfo("123");
// Set the engine as the video source.
remoteVideoSurface.SetVideoSource(engine);
}
}
// Start playing the stream.
engine.StartPlayingStream(“123”);
To listen for and handle various events that may happen after stream playing starts, you can implement the corresponding event callback methods of the event handler as needed. The following is a common event callback related to stream playing:
onPlayerStateUpdate
: Callback for updates on stream playing status. After stream playing starts, if the status changes (for example, when the stream playing is interrupted due to network issues and the SDK retries to start playing the stream again), the SDK sends out the event notification through this callback.onPlayerQualityUpdate
: Callback for reporting stream playing quality. After stream playing starts, the SDK sends out the streaming quality data (frame rate, bit rate, RTT, packet loss rate, etc.) through this callback every 3 seconds.onPlayerMediaEvent
: Callback for reporting streaming media events. After stream playing starts, when events occur (for example, the audio or video stutters or recovers from a stutter) the SDK sends out the event notification through this callback.
Event callbacks are delegates of the ZegoExpressEngine
class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine
instance.
// Callback for updates on stream playing status.
public void OnPlayerStateUpdate(string streamId, ZegoPlayerState state, int errorCode, string extendedData)
{
// Implement the callback handling logic as needed.
}
// Callback for reporting stream playing quality.
private void OnPlayerQualityUpdate(string streamId, ZegoPlayStreamQuality quality)
{
// Implement the callback handling logic as needed.
}
// Callback for reporting streaming media events.
private void OnPlayerMediaEvent(string streamId, ZegoPlayerMediaEvent mediaEvent)
{
// Implement the callback handling logic as needed.
}
// Assign the callback handling methods you implement to the delegates of the engine.
engine.onPlayerStateUpdate = OnPlayerStateUpdate;
engine.onPlayerMediaEvent = OnPlayerMediaEvent;
engine.onPlayerQualityUpdate = OnPlayerQualityUpdate;
engine.StartPlayingStream("123");
Test out the voice call
We recommend you run your project on a real device. If your app runs successfully, you should hear the sound and see the video captured locally from your device.
To test out the real-time audio and video features, visit the ZEGO Express Web Demo, and enter the same AppID
, Server
and RoomID
to join the same room. If it runs successfully, you should be able to view the video from both the local side and the remote side, and hear the sound from both sides as well.
In audio-only scenarios, no video will be captured and displayed.
Stop publishing and playing streams
To stop publishing a local audio or video stream to remote users, call the stopPublishingStream
method.
// Stop publishing a stream
engine.StopPublishingStream();
To stop playing a remote audio and video stream, call the stopPlayingStream
method with the corresponding stream ID passed to the streamID
parameter.
// stop playing a stream
engine.StopPlayingStream("123");
Log out of a room
To log out of a room, call the logoutRoom
method with the corresponding room ID passed to the roomID
parameter.
// log out of a room
engine.LogoutRoom("123666");
Destroy the ZegoExpressEngine
instance
To destroy the ZegoExpressEngine
instance and release the resources it occupies, call the destroyEngine
method.
// Destroy the engine instance
ZegoExpressEngine.DestroyEngine();
